| Model | CNKL6246-3 |

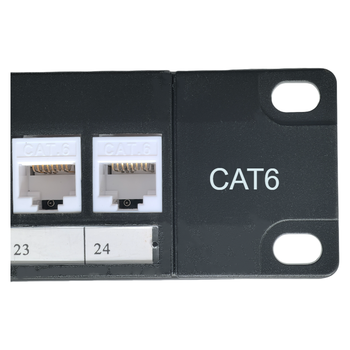

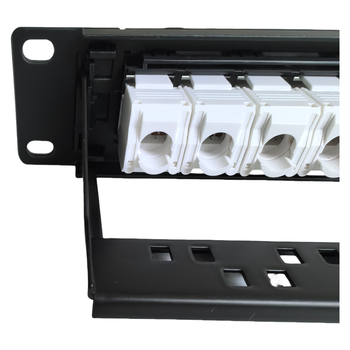

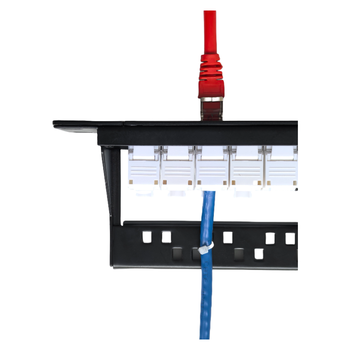

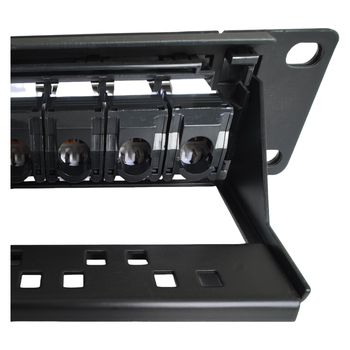

| Product Name | 1U Cat6 UTP Modular Patch Panel |
| Model | CNKL6246-3 |
| Brand | CNKL or OEM |
| Place of Origin | Zhejiang, China |
| Type | CAT6 UTP Patch Panel |
| Application | Network Cabling System |
| Connection | rj45 female |
| Standard | ISO/IEC 11801; EN 50173;TIA/EIA568-C; GB50311-2016 |
| Working Temperature | -10°C ~ 60°C |
| Storage Temperature | -40°C ~ 70°C |
| Humidity | 95%(non-condensing) |
| Pin | 3U Gold Plated or Custom(Max50U) |
| Wiring Scheme | AWG22-26 |
| Durability | ≥750 Plugging times |
| Size | 483mm*44.3mm*82mm |

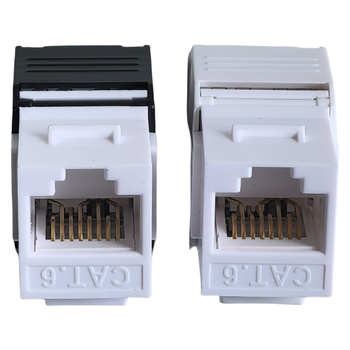

| Connector Type | RJ45 8P8C |
| Selling Unit | Single item |
| Single Package Size | 51 x 9 x 7 CM/Piece |
| Single Gross Weight | 0.83 kg |
