| Model | CNKL2017 |

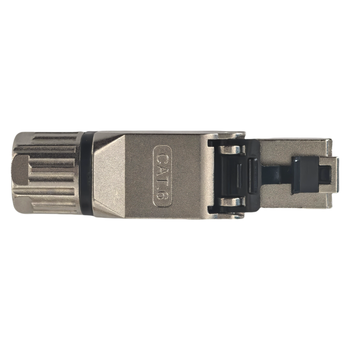

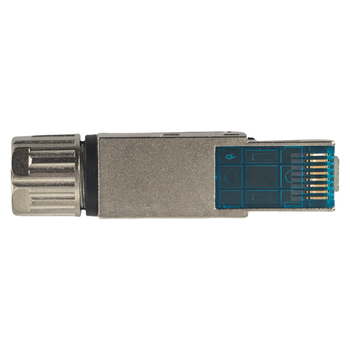

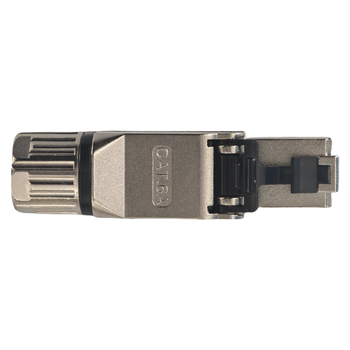

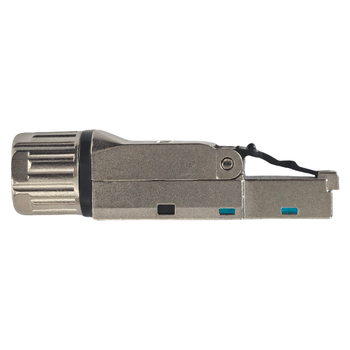

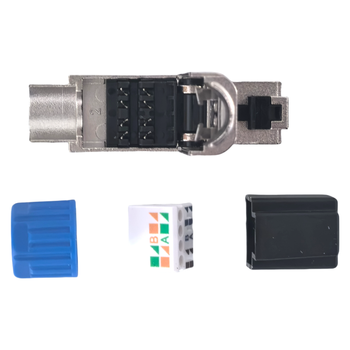

| Product Name | CAT6/CAT6A/CAT7 FTP/STP Modular Plug |
| Model | CNKL2017 |
| Standard | ISO/IEC 11801; EN 50173;TIA/EIA568-C; GB50311-2016 |
| Working Temperature | -10°C ~ 60°C |
| Storage Temperature | -40°C ~ 70°C |
| Humidity | 95%(non-condensing) |
| Rated Current | 1.5A(20°C) |
| Pin | 3U Gold Plated(Custom Acceptable Max 50U) |
| Wiring Scheme | AWG22-26 |
| Durability | ≥750 Plugging times |
| Connector Type | RJ45 |
| Selling Unit | Single item |
| Single Package Size | 8 x 5 x 3 CM/Piece |
| Single Gross Weight | 0.027 kg |
